| Tight Head Steel Drum composite series - 120L |
 | |
|
| Standard S.K.U.s |
9012050221 |

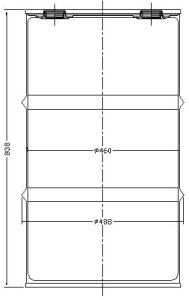

| Capacity |
120 L |
| Maximum diameter |
488 mm |
| Internal diameter |
460 mm |
| External height |
838 mm |
| Body thickness |
1.0 mm |
| Bottom thickness |
1.2 mm |
| Lid thickness |
1.2 mm |
| liner weight |
3 kg |
| Total weight |
18 kg |
| Body shape |
two expanders |
| Seaming |
double seaming |
| Closure (plug+oring / lid+gusket) |
two 56X4 plastic plug + PE washer |
| External coating |
body - green RAL 6001 polyester
top & bottom galvanize |
| Internal coating |
PE liner |
| Sector of use |
food / chemicals |
| UN approval |
6HA1/X2.2/300 | |
| |
|
| Main Features and Applications |
-
A composition of the metal shell toughness and the plastic liner chemical stability .creates a super durable package.
-
Optimal design for container loading.
-
Available at different metal thickness and plastic weights for optimum customer match.
-
UN's approval is available for the transportation of hazardous materials by land, sea or air.
-
The drum is especially suitable for heavy corrosive liquids as well as for sensitive products
-
Body's Exterior design for aggressive atmosphere – Body with Polyester paint and Top and bottom ends are made of galvanized steel
-
Food compliance of the plastic liner is optional.
-
Different colors for top, bottom & body available.
-
All the colors are heavy metal free.
-
External screen printing of customer's design in the middle of the drum is optional. |
|
|
| Pallet load for local market |
|
Freight load |
 |
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
| Units / Layer |
|
6 |
| Number of layers |
|
3 |
| Total |
|
18 |
|
Truck |
Full Trailer
|
Semi Trailer
|
| Metal Cages / Vehicle |
|
|
|
| Total Vehicle |
|
|
|
| Pallets / Vehicle |
14 |
24 |
|
| Total Vehicle |
252 |
432 |
|
Container load
|
Palletized Load |
Free Load |
| Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
| 20FT |
|
|
|
147 |
| 40FT |
|
|
|
303 |
| HC |
|
|
|
360 | | |
|
Standard
56X4 (2") Trisure plastic plug
Pachmas S.K.U: 0301022002 |
2" plastic with metal strip Tamper-Evident Cap Seal - white
Pachmas S.K.U: 0304032000 | |
Optional
Metal safty pin for lever lock ring
Pachmas S.K.U: 0310010011
|
56X4 (2") Trisure plastic plug with membrane vent
Pachmas S.K.U: 0301026920 |
56X4 (2") Trisure plastic plug with 3/4" adaptor
Pachmas S.K.U: 0301022001 |
| |
