| O.T. Steel Drum conical series - 210L |
 | |
|
Standard S.K.U.s
|
9321040430 |
| Capacity |
217 L
|

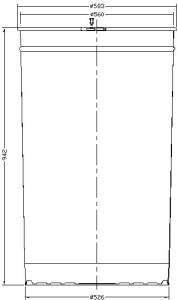

| Maximum diameter |
583mm
|
| Upper internal diameter |
560 mm
|
| Lower internal diameter |
525 mm |
| External height |
942 mm |
| Body thickness |
0.8 mm |
| Bottom thickness |
0.6 mm |
| Lid thickness |
0.6 mm |
| Weight |
13.0 kg |
| Body shape |
conical - one expander |
| Seaming |
double seamimng |
| Closure (plug+oring / lid+gusket) |
metal lid + PU gasket + lever locking ring |
| External coating |
green RAL 6001 alkyd-melamine or polyester |
| Internal coating |
red epoxy lacuer |
| Sector of use |
food / dangerous waste |
| UN approval |
optional - 1A2/Y220/S | |
| |
|
| Main Features and Applications |
-
Open Top Conical Steel Drums are suitable for packaging, storing and transporting of liquids (in a bag), solid, powders and pasty products.
-
Nest-able drums – very efficient in transportation and storage before filling
-
Pachmas easy release design allows bottom without holes
-
Available at metal thickness of 0.7-0.8 mm.
-
UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air.
-
The metal surfaces are prepared for optimal paint application and best adhesion. Internal coatings for food and chemicals are available.
-
Different colors for top, bottom & body available.
-
All the colors are heavy metal free oven baked paints.
-
A removable metal lid is fitted to the drum's top. The lid is locked by a galvanized lever lock ring with safety pin hole. A Plastic snap-on lid is optional. |
|
|
| Pallet load for local market |
|
Freight load |
 |
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
| Units / Layer |
|
4 |
| Number of layers |
|
18 |
| Total |
|
72 |
|
Truck |
Full Trailer
|
Semi Trailer
|
| Metal Cages / Vehicle |
|
|
|
| Total Vehicle |
|
|
|
| Pallets / Vehicle |
7 |
16 |
|
| Total Vehicle |
504 |
1152 |
|
Container load
|
Palletized Load |
Free Load |
| Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
| 20FT |
56 |
9 |
504 |
|
| 40FT |
56 |
18 |
1008 |
|
| HC |
72 |
18 |
1296 |
| |
|
Standard
Plastic safty pin for lever lock ring
Pachmas S.K.U: 0310010000 |
| |
Optional
Metal safty pin for lever lock ring
Pachmas S.K.U: 0310010011
|
| |
