| O.T. Steel Drum cylindric series - 20L |
 | |
|
Standard S.K.U.s
|
9002035010 |
| Capacity |
20 L
|
| Maximum diameter |
338mm
|
| Upper internal diameter |
314 mm
|
| Lower internal diameter |
314 mm |
| External height |
312 mm |
| Body thickness |
0.6 mm |
| Bottom thickness |
0.6 mm |
| Lid thickness |
0.6 mm |
| Weight |
2.8 kg |
| Body shape |
two expanders |
| Seaming |
double seamimng |
| Closure (plug+oring / lid+gusket) |
metal lid + PU gasket + lever locking ring |
| External coating |
blue RAL 5010 alkyd-melamine or polyester |
| Internal coating |
brown phenolic |
| Sector of use |
food / chemicals |
| UN approval |
optional - 1A2/Y75/S | |
| |
|
| Main Features and Applications |
-
Open Top Steel Drums are suitable for packaging, storing and transporting of liquids (in a bag), solid, powders and pasty products.
-
Metal toughness allowing the storage of the products up to 6 heights
-
Narrow neck design for optimal container loading.
-
Available at metal thickness of 0.7-1.2 mm.
-
UN's approvals are available for some types for the transportation of hazardous materials by land, sea or air.
-
The metal surfaces are prepared for optimal paint application and best adhesion. Internal coatings for food and chemicals are available.
-
Different colors for top, bottom & body available.
-
All the colors are heavy metal free.
-
External screen printing of customer's design in the middle of the drum is optional.
- A removable metal lid is fitted to the drum's top. A Plastic lid is optional for most types. The lid is locked by a galvanized lever lock ring with safety pin hole.
|
|
|

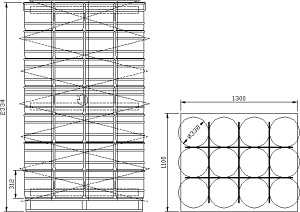

| Pallet load for local market |
|
Freight load |
|
|
For local market distribution
|
Units / Metal cage |
Units/ Pallet |
| Units / Layer |
|
12 |
| Number of layers |
|
7 |
| Total |
|
84 |
|
Truck |
Full Trailer
|
Semi Trailer
|
| Metal Cages / Vehicle |
|
|
|
| Total Vehicle |
|
|
|
| Pallets / Vehicle |
14 |
24 |
|
| Total Vehicle |
1176 |
2016 |
|
Container load
|
Palletized Load |
Free Load |
| Container |
Units / Pallet |
Pallets / Cont |
Units / Cont |
| 20FT |
|
|
|
833 |
| 40FT |
|
|
|
1225 |
| HC |
|
|
|
1400 |
| |
|
Standard
Plastic safty pin for lever lock ring
Pachmas S.K.U: 0310010000 |
| |
Optional
Metal safty pin for lever lock ring
Pachmas S.K.U: 0310010011
|
| |
Alternative
|
|
|
